Welcome to the fourth issue of the Hadoop Tutorial Series. Combiners are another important Hadoop’s feature that every hadoop developer should be aware of. The primary goal of combiners is to optimize/minimize the number of key value pairs that will be shuffled accross the network between mappers and reducers and thus to save as most bandwidth as possible.

Indeed, to give you the intuition of why combiner helps reducing the number of data sent to the reducers, imagine the word count example on a text containing one million times the word “the”. Without combiner the mapper will send one million key/value pairs of the form <the,1>. With combiners, it will potentially send much less key/value pairs of the form <the,N> with N a number potentially much bigger than 1. That’s just the intuition (see the references at the end of the post for more details).

Simply speaking a combiner can be considered as a “mini reducer” that will be applied potentially several times still during the map phase before to send the new (hopefully reduced) set of key/value pairs to the reducer(s). This is why a combiner must implement the Reducer interface (or extend the Reducer class as of hadoop 0.20).

In general you can even use the same reducer method as both your reducer and your combiner. This is the case for the word count example where using a combiner remains to add a single line of code in your main method:

conf.setCombinerClass(Reduce.class);

where conf is your JobConf, or, if you use hadoop 0.20.1:

job.setCombinerClass(Reduce.class);

where job is your Job built with a customized Configuration.

That sounds pretty simple and useful and at first look you would be ready to use combiners all the time by adding this simple line, but there is a small catch. The first kind of reducers that comes naturally as a counter example of using combiner is the “mean reducer” that computes the mean of all the values associated with an given key.

Indeed, suppose 5 key/value pairs emitted from the mapper for a given key k: <k,40>, <k,30>, <k,20>, <k,2>, <k,8>. Without combiner, when the reducer will receive the list <k,{40,30,20,2,8}>, the mean output will be 20, but if a combiner were applied before on the two sets (<k,40>, <k,30>, <k,20>) and (<k,2>, <k,8>) separately, then the reducer would have received the list <k,{30,5}> and the output would have been different (17.5) which is an unexpected behavior.

More generally, combiners can be used when the function you want to apply is both commutative and associative (that’s pretty intuitive to understand why). That’s the case for the addition function, this is why the word count example can benefit from combiners but not for the mean function (which is not associative as shown in the counter example above).

Note that for the mean function you can use a workaround for using combiners by using two separate reduce methods, a first one that would be used as the addition function (and thus that can be set as the combiner) that would emit the intermediate sum as the key and the number of addition involved as the value, and a second reduce function that would compute the mean by taking into account the number of addition involved (see the references for more details on that).

As usual in this series, let’s observe the lesson learned in action using our learning playground. For that you can use the original word count example (or its hadoop 0.20.1 version that we used in the previous issue), add it the single combine line as specified earlier in the post and run it on our moby-dick mascot. Here what we can see at the end of the execution:

Output of the word count example when using a combiner. Click to enlarge.

Now that you understand what counters are, if you click to enlarge the picture, you’ll see the value of two counters: Combine input records=215137 and Combine output records=33783. That’s a pretty serious reduction of the number of key/value pairs to send to the reducers. You can easily imagine the impact for much larger jobs (see the reference below for real numbers).

Enjoy combiners, whenever you can…

References

• See the 4th tip of this must read blog post by Todd Lipcon for feeling better the benefit of combiners on a 40GB wordcount job benchmark.
• For a deeper understanding of when and how combiners are used in the mapReduce data flow, check this section of the (quiet heavy but) excellent Yahoo! hadoop tutorial.
• To extend the intuition given in the post on why combiners help, you can go over this walk-through.
• Both Hadoop the definitive guide and Hadoop in Action contains interesting information on combiners (part of both of them inspired this post). In particular the first contains a great section on when exactly the combiners comes into play in the mapReduce data flow. The second contains a full code of the mean function workaround mentioned above.

Note: This post has been updated with a code working for hadoop 0.20.1.

In this 3rd issue of the hadoop tutorial series, we’ll speak about a very simple but very useful hadoop’s feature: counters.

Even if you have never defined any counters in hadoop, you can see some of them each time you are running an hadoop job. Indeed, here is what you can see from the client console at the end of the execution of a job (can also be seen from the web interface):

Hadoop internal counters at the end of a job (Click to enlarge).

As you can see, 18 internal counters are presented inside different groups. For instance, you can see a section “Job Counters” with three different counters giving basic information about the job like the number of mappers and reducers. In that example, “Job Counters” is called the group of the counter and “Launched reduce tasks” (for instance) is properly the name of the counter.

It is very handy to define your own counters to track any kind of statistics about the records you are manipulating in the mapper and the reducer. The most natural use of that is to use counters to track the number of malformed records.

If you are executing a job  and you see an abnormally high number of malformed records, it can give a good hint that you perhaps have a bug in your code or some problem with your data (note this is actually a much simpler way to spot issues than tracking error messages in a distributed set of log files). But you can actually use counters for any kind of other statistics on your records.

One easy way to define your own counters from your Java code is:

• Declaring an enum representing your counters. The enum name is the group of the counter, and each field of the enum is the name of the counter that will be reported in this same group
• Incrementing the desired counters from your map and reduce methods through the Context of your mapper or reducer (in previous hadoop version it was through the Reporter.incrCounter() method, but the reporter no longer exists in hadoop 0.20)

So let’s see an example. We’ll take the word count example revised for version 0.20.1 to illustrate the use of counters. We will create a counter group called WordsNature that will count how many unique tokens there is in all, how many unique tokens starts with a digit and how many unique tokens starts with a letter.

So our enum declaration will look like that:

 static enum WordsNature { STARTS_WITH_DIGIT, STARTS_WITH_LETTER, ALL }

We will also need a very basic StringUtils class:

package com.philippeadjiman.hadooptraining;

public class StringUtils {

	public static boolean startsWithDigit(String s){
		if( s == null || s.length() == 0 )
			return false;

		return Character.isDigit(s.charAt(0));
	}

	public static boolean startsWithLetter(String s){
		if( s == null || s.length() == 0 )
			return false;

		return Character.isLetter(s.charAt(0));
	}

}

Since we are interested in unique tokens, we will put the code related with the counter into the reduce method. So here how the reduce method will look like:

public void reduce(Text key, Iterable values, Context context)
	throws IOException, InterruptedException {

	int sum = 0;
	String token = key.toString();
	if( StringUtils.startsWithDigit(token) ){
		context.getCounter(WordsNature.STARTS_WITH_DIGIT).increment(1);
	}
	else if( StringUtils.startsWithLetter(token) ){
		context.getCounter(WordsNature.STARTS_WITH_LETTER).increment(1);
	}
	context.getCounter(WordsNature.ALL).increment(1);
	for (IntWritable value : values) {
		sum += value.get();
	}
	context.write(key, new IntWritable(sum));
}

Here is the code of the WordCountWithCounter that include this code.

If you want to run it inside our learning playground you’ll just have to update the pom with hadoop latest version:

<dependency>
<groupId>org.apache.mahout.hadoop</groupId>
<artifactId>hadoop-core</artifactId>
<version>0.20.1</version>
</dependency>

So here is the result after running the code with, as input, the whole text of moby dick:

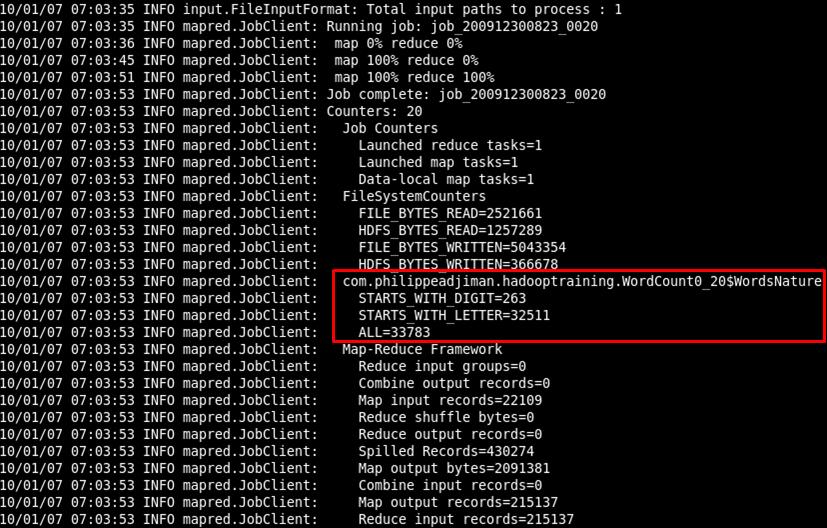

We can now see our home made counters. (Click to enlarge)

So we can see now that we have 33783 unique tokens, 32511 starting with a letter and 263 starting with a digit. What about the 1009 others?? Well, because the word count example use a basic StringTokenizer that splits tokens at spaces, a lot of words simply starts with a ‘(’ or with a ‘[’ and even with ‘–’. To solve that you can for instance use a lucene StandardAnalyzer.

You should now be able to easily implements your own counters for tracking bad records/missing values, debugging or gathering any kind of statistics around your job.

See you soon for another issue…
